Capelin September data

The foundation for modelling capelin is the yearly joint IMR-PINRO trawl-acoustic survey in September. The survey results are transferred to the Excel spreadsheet CapTab, which is considered the authoritative source of information on the capelin stock from this survey. In addition, files of historic bootstrap replicates of the September estimates are stored on files, one file for each year. Two different methods has been used: bootstrapping using a parametric model for earlier data and bootstrapping the input data for later years. In Bifrost, the bootstrapped replicates are scaled to yield the same as the CapTab data on sex-aggregated age and used when replicates of maturation and predation parameters are estimated.

1972

1973

1974

1975

1976

1977

1978

1979

1980

1981

1982

1983

1984

1985

1986

1987

1988

1989

1990

1991

1992

1993

1994

1995

1996

1997

1998

1999

2000

2001

2002

2003

2004

2005

2006

2007

2008

2009

2010

2011

2012

2013

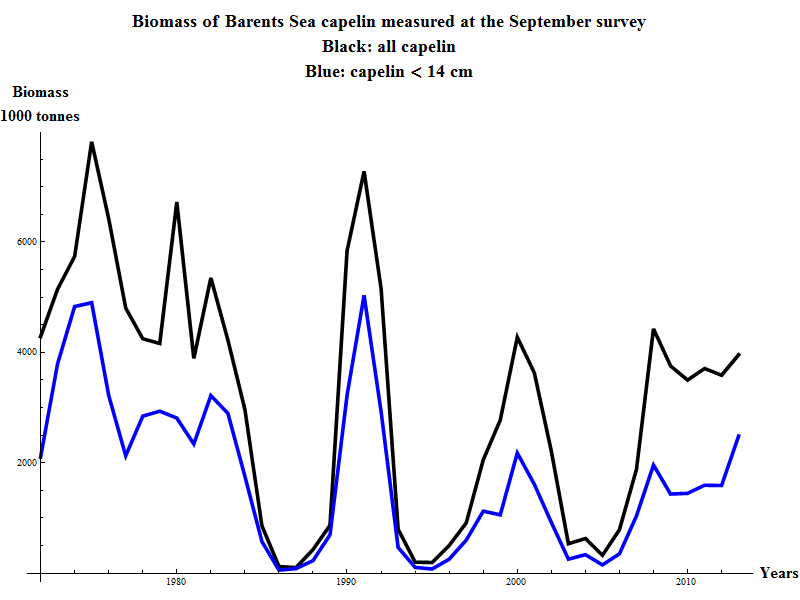

Graphics:Biomass of Barents Sea capelin measured at the September survey Black: all capelin Blue: capelin < 14 cm

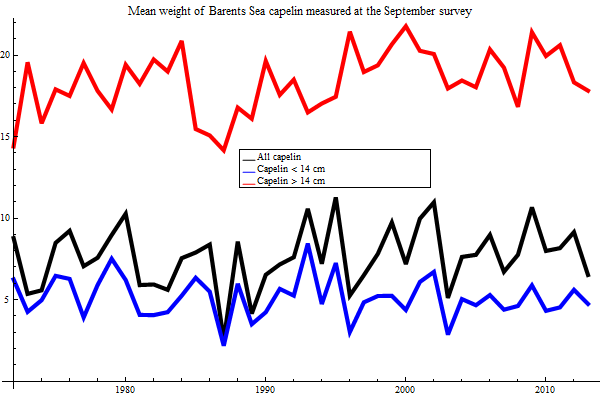

Graphics:Mean weight of Barents Sea capelin measured at the September survey

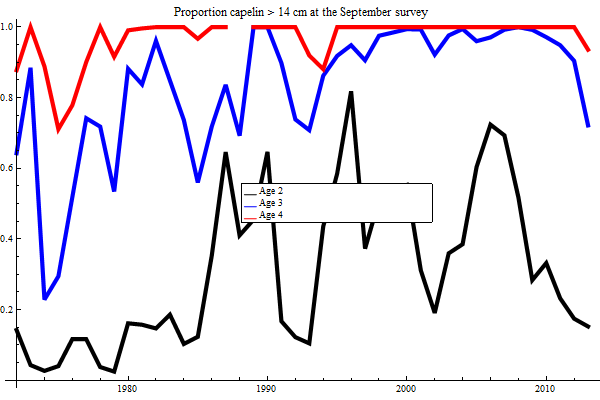

Graphics:Proportion capelin > 14 cm at the September survey
